Innovative Full Inverter Technology
- Brand new technology released for the 2024 season
- Incorporates full DC inverter technology for variable-speed operation, allowing the unit to dynamically adjust its heating output to your conditions
- Heats pools in lower ambient temperatures and dryer climates than standard fixed-speed heat pumps
- Reduces running electricity consumption while maintaining high peak power
Eco-Friendly and Cost-Effective
- Operates on clean electricity with zero carbon emissions or air pollution
- Large radiator manifold for efficient heat exchange
- Uses environmentally friendly R410a refrigerant which is non-flammable and non ozone-depleting
- Eliminates costs associated with installing propane or gas heaters
Versatile Compatibility
- Suitable for in-ground pools up to 17,500 gallons
- Compatible with above-ground pools up to 27 feet in diameter or 18x33 feet oval pools
- Works with both saltwater and freshwater pools
- Variable speed output allows for consistent operation even in drier climates
Durable and Compact Design
- Weather-resistant chassis for durability across seasons
- Compact size (25"x25"x29") allows for flexible installation options
- Includes necessary fittings for easy setup
Simplified Operation
- Digital control panel with intuitive display
- Wi-Fi and mobile app integration for remote control capabilities
- Effortless temperature adjustments and monitoring

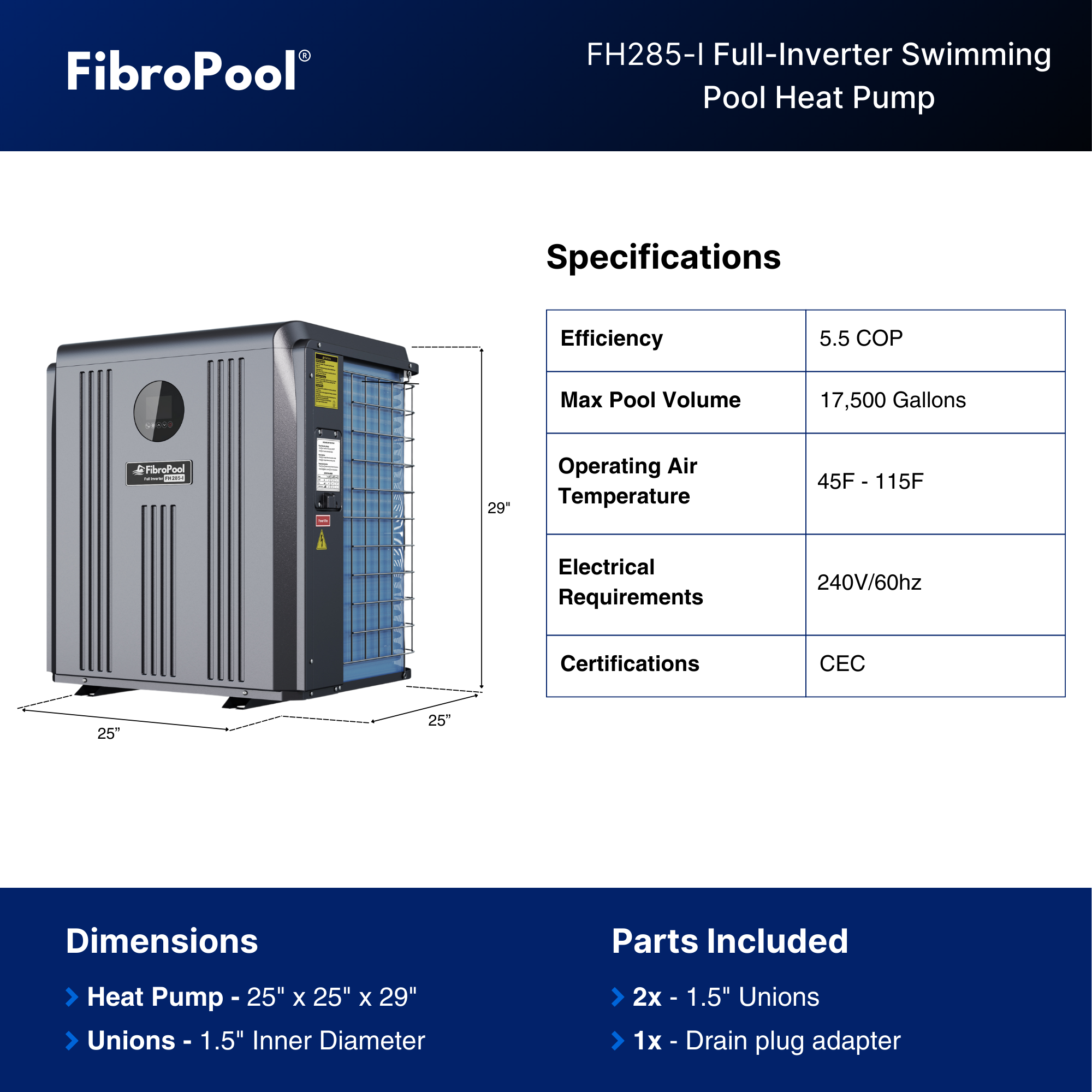

| Heat Output | 85,000 BTU/hr |
| Voltage | 220-240V, 60hz |
| Peak Input Power | 30 Amps |
| Max Water Volume | 17500 gal |
| Heating COP | 5.5 |
| Minimum Operating Temperature | 40F |
| Exhaust Fan Clearance | 60 in |
| Radiator Clearance | 40 in |
| Technologies |
|
| Product Dimensions | 25.0 in , 25.0 in , 29.0 in |
| Product Weight | 134 lb |
| Shipping Dimensions | 28.0 in , 26.0 in , 31.0 in |
| Shipping Weight | 165 lb |
| Connection Size | 1.5 in |
| Refrigerant Type | R410a |
| Refrigerant Weight | 3.11 lb |
| Waterproof Class | IPX4 |
| Standards & Certifications |
|
Seamless Smart Home Integration
The FH235-i and FH285-i feature a beautifully designed digital controller that connects to Wi-Fi and Bluetooth for seamless remote-control capabilities. Adjust temperature, change operating modes, and set timer rules right from your smart phone.
Learn how to connectFrequently Asked Questions
With proper sizing, you can typically expect a heat pump to keep your pools water around 15 degrees above the ambient air temperature.
FibroPool heat pumps will work best with outside temperatures of 60 degrees or above. As the temperature gets lower, the efficiency and performance of the unit will be reduced.
The internal flow sensor on our units requires at least 25 gallons per minute to keep the unit on. For most pool setups this will require a circulating pump with around 1/3 horsepower.
All FibroPool heat pumps are compatible with both fresh and saltwater pools. During installation, make sure your heat pump is installed upstream of your salt cell or inline chlorinator with a check valve installed between them to prevent any backflow into the unit.
