Innovative Full Inverter Technology
- Brand new technology released for the 2024 season
- Incorporates full DC inverter technology for variable-speed operation, allowing the unit to dynamically adjust its heating output to your conditions
- Heats pools in lower ambient temperatures and dryer climates than standard fixed-speed heat pumps
- Reduces running electricity consumption while maintaining high peak power
Eco-Friendly and Cost-Effective
- Operates on clean electricity with zero carbon emissions or air pollution
- Large radiator manifold for efficient heat exchange
- Uses environmentally friendly R410a refrigerant which is non-flammable and non ozone-depleting
- Eliminates costs associated with installing propane or gas heaters

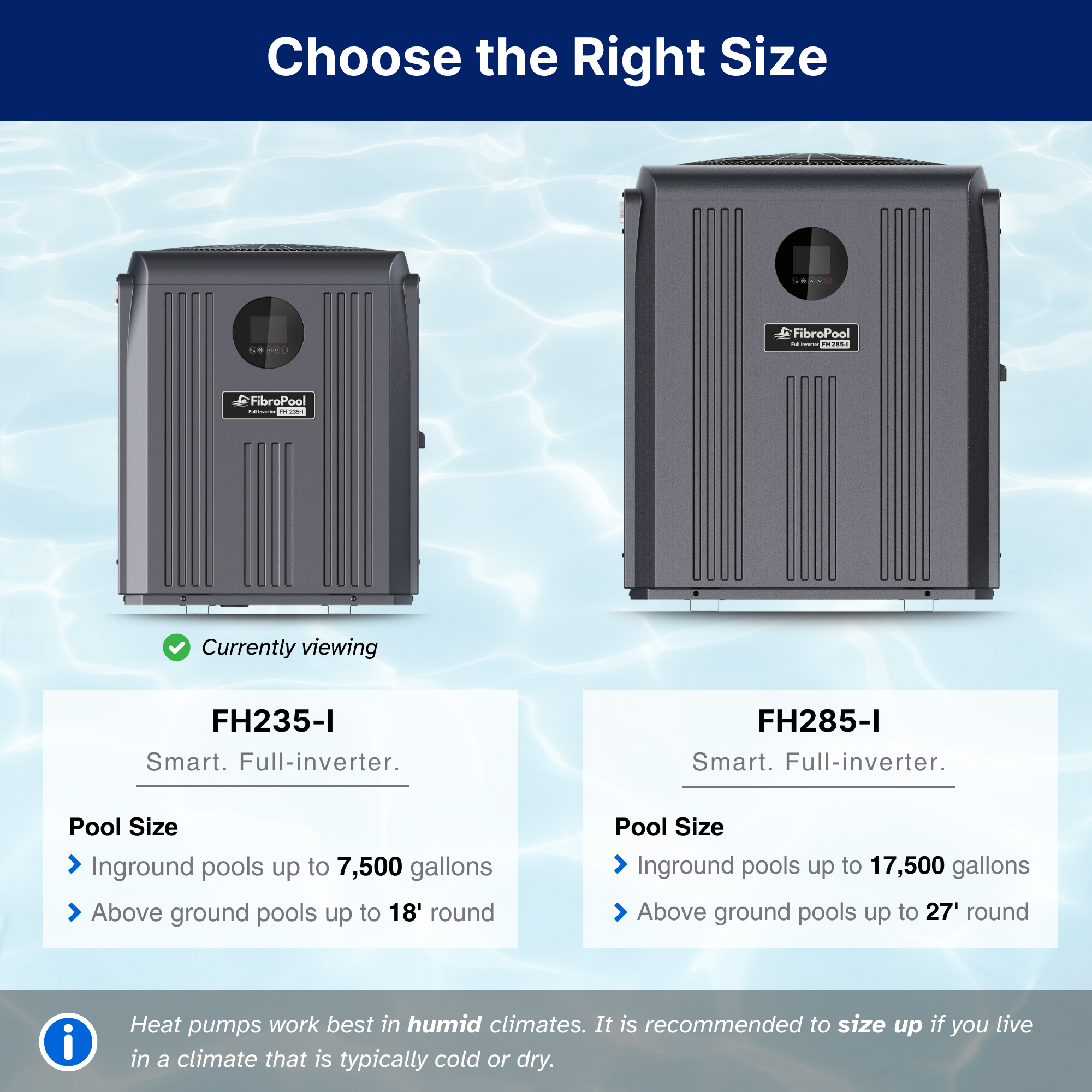

Versatile Compatibility
- Suitable for in-ground pools up to 7,500 gallons
- Compatible with above-ground pools up to 18 feet in diameter or 12x24 feet oval pools
- Works with both saltwater and freshwater pools
- Variable speed output allows for consistent operation even in drier climates
Durable and Compact Design
- Weather-resistant chassis for durability across seasons
- Compact size (21"x21"x25") allows for flexible installation options
- Includes necessary fittings for easy setup
Simplified Operation
- Digital control panel with intuitive display
- Wi-Fi and mobile app integration for remote control capabilities
- Effortless temperature adjustments and monitoring

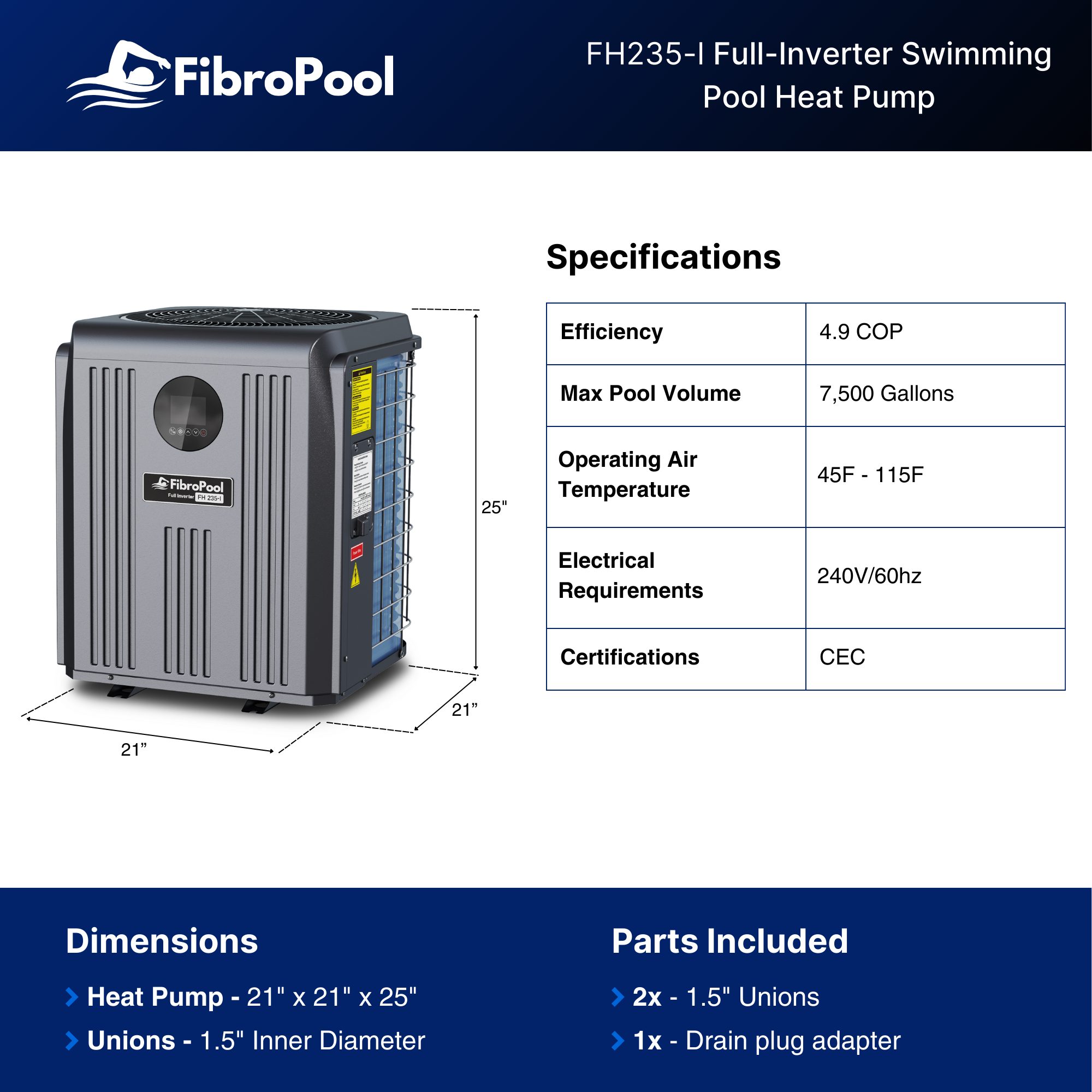

| Heat Output | 35,000 BTU/hr |
| Voltage | 220-240V, 60hz |
| Peak Input Power | 10 Amps |
| Max Water Volume | 7500 gal |

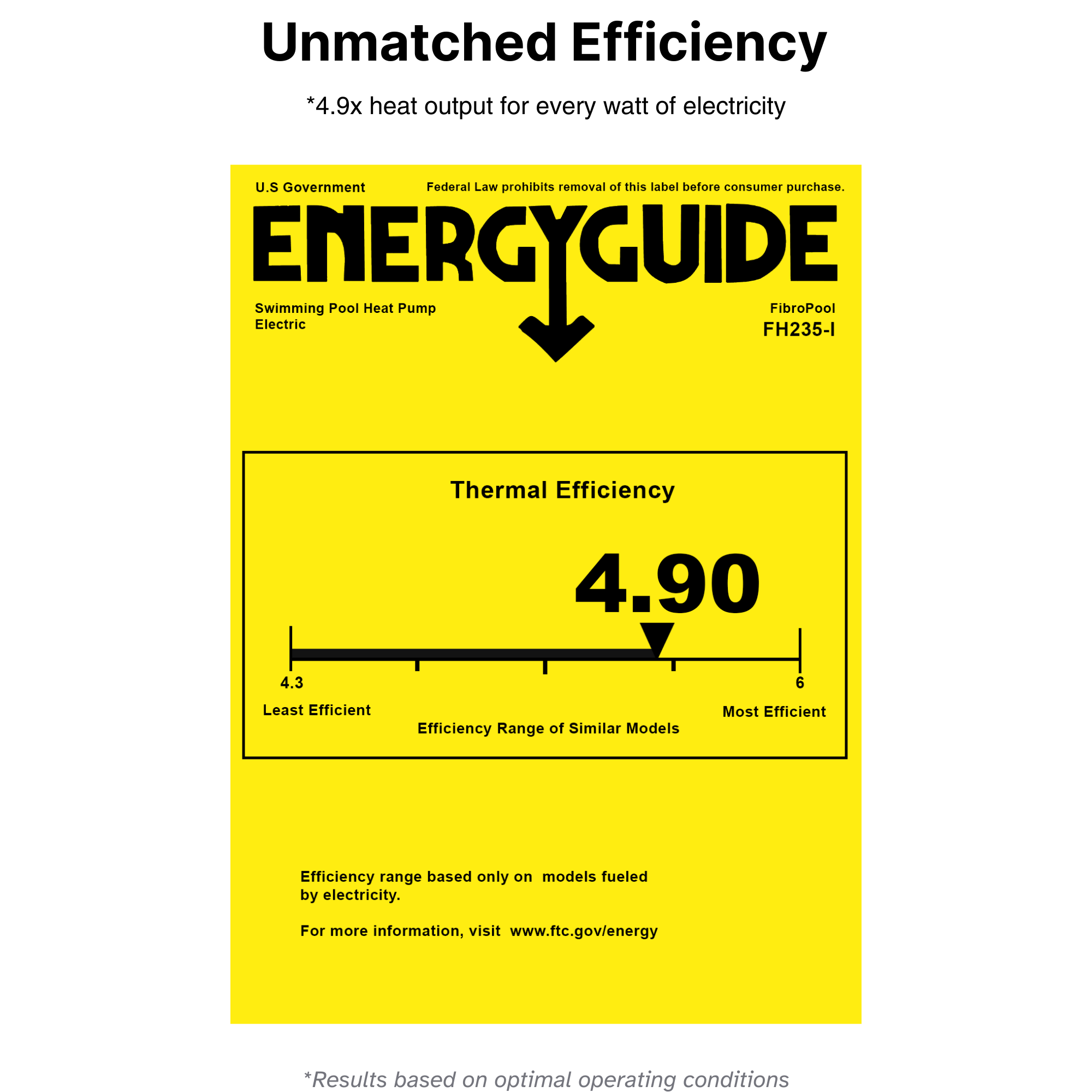

| Heating COP | 5.5 |
| Minimum Operating Temperature | 40F |
| Exhaust Fan Clearance | 60 in |
| Radiator Clearance | 40 in |
| Technologies |
|
| Product Dimensions | 21.0 in , 21.0 in , 25.0 in |
| Product Weight | 97 lb |
| Shipping Dimensions | 24.0 in , 22.0 in , 26.0 in |
| Shipping Weight | 115 lb |
| Connection Size | 1.5 in |
| Refrigerant Type | R410a |
| Refrigerant Weight | 1.15 lb |
| Waterproof Class | IPX4 |
| Standards & Certifications |
|
Seamless Smart Home Integration
The FH235-i and FH285-i feature a beautifully designed digital controller that connects to Wi-Fi and Bluetooth for seamless remote-control capabilities. Adjust temperature, change operating modes, and set timer rules right from your smart phone.
Learn how to connectFrequently Asked Questions
With proper sizing, you can typically expect a heat pump to keep your pools water around 15 degrees above the ambient air temperature.
FibroPool heat pumps will work best with outside temperatures of 60 degrees or above. As the temperature gets lower, the efficiency and performance of the unit will be reduced.
The internal flow sensor on our units requires at least 25 gallons per minute to keep the unit on. For most pool setups this will require a circulating pump with around 1/3 horsepower.
All FibroPool heat pumps are compatible with both fresh and saltwater pools. During installation, make sure your heat pump is installed upstream of your salt cell or inline chlorinator with a check valve installed between them to prevent any backflow into the unit.
- ACAlbert C.Verified BuyerRated 5 out of 5 stars4 months agoIt's doing it's job!
8500 - 9k gal pool. Pump rated for 7500 gal. Took 2 days to go from 66F to 77F. Both days were 75 degree sunny days. The pool temp may reach 79 F on the second day. The heat pump and my pool are exposed to the sun all day in my yard if the sun is out and no clouds. I guess that's an advantage I have. Overnight it seems to hold the pool temp. I have no solar cover. My pool usually doesn't reach 82F until late June without a heater, I am almost there in middle of May. My pool opened beginning of May. I believe the pump will also cool down the water if it gets to warm, that's a wait and see.
The wifi feature is nice with the Smart Home app and it's easy to set up. You can do basic things like set your temp, change the heater mode and add timers.
It took our plumber\electrician 6 hours to connect. I needed additional plumbing lines to tap into existing plumbing. He was scratching his head with the electrical connection requirements, but he figured it out. There are no knockouts for the electrical wires and the pump didn't ship with a bonding lug. Fibro pool shipped one out for me at no charge.
The pump is not loud, but it's noticeable when on boost mode or auto. There is a silent heat mode the quiets it down, but not sure if it's effective at heating the pool on this mode, haven't tried yet. Still learning the nuisances.
I'd recommend getting this pump, just be patient with it to heat your pool.
- PPAULVerified BuyerRated 4 out of 5 stars4 months agoHeats slowly
Takes several days to get the pool raise 5 degrees.....85 degre days 70 degree at night
- JKJoanne K.Verified BuyerRated 5 out of 5 stars5 months agoReceived the pool heater but
Received the pool heater but waiting on a question as to what the small connector is for in the electrical connections box
